Data Network & Infrastructure

Mikrotik Router and Cloud

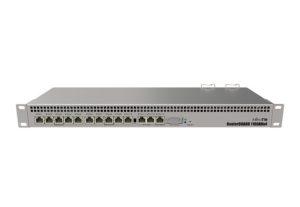

Mikrotik Network router

Management Router

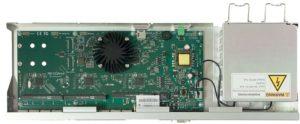

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3 at support).

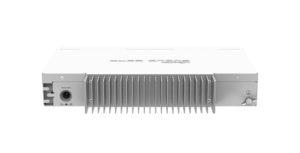

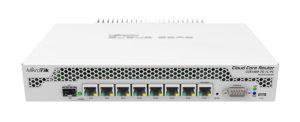

Cloud Core Router

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

Planet Network Management Device

Data System

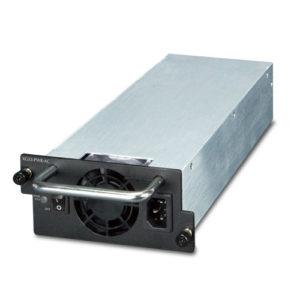

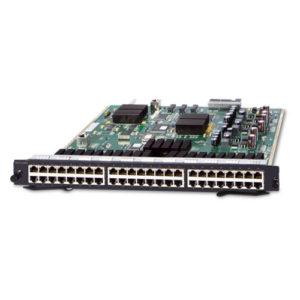

Planet Device
PLANET XGS3-42000R Core Layer Routing Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required.
The XGS3-42000R supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1d/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc.
The Chassis Switch also supports IPv6/IPv4 routing protocols including Layer 3 IP Static Routing, RIPv1/v2, OSPF, and VRRP protocols. Built in with abundant multicast features, the XGS3-42000R supports rich L2 multicast features such as IGMP snooping v1/v2/v3 and L3 multicast protocols -- DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-42000R Chassis Switch solution is cost-effective yet has the ability to expand to meet today’s demand for network expansion.
For efficient management, the XGS3-42000R Chassis Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the XGS3-42000R offers an easy-to-use, platform-independent management and configuration facility. The XGS3-42000R supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-42000R can be accessed via Telnet and the console port. Moreover, the XGS3-42000R offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.

Ubiquiti Access Point

Data System (Access Point)

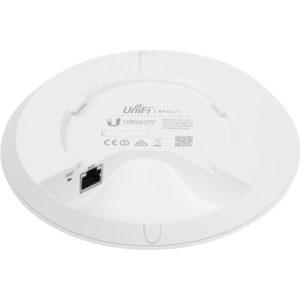

Ubiquiti Access Point Device Ceiling type
Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.
• 10Gigabit Ethernet Support
• 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
• Dual 5 GHz 802.11ac Wave 2 Radios
• 3.466 Gbps Combined Radio Rate in 5 GHz
• 800 Mbps Radio Rate in 2.4 GHz
• Dedicated Security Radio with Persistent Threat Management
• 1,500 Client Association Limit
• 802.3bt Power Injector Included

Data System (Access Point)

Ubiquiti Access Point Device Wall Type

In-Wall 802.11ac Wave2 MU-MIMO Enterprise Access Point.
• 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
• 802.3af for base functionality. 802.3at required if using PoE pass through
• 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE pass through (port 1 only)
